iCervico is an innovative system of prosthetic components that integrates digital technology to offer easy, predictable and biologically harmonized restorations, by bridging surgery with prosthetics.
It’s a system suitable for different clinical protocols:
- Healing stage
- Single unit prosthesis
- Bridge (Multiple unit prosthesis)
The parts of iCervico:

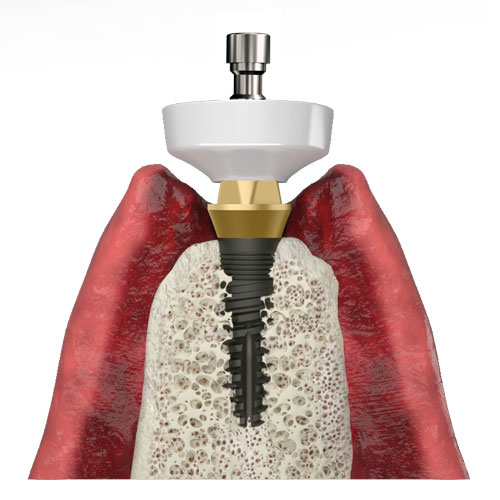

- iCervico Healer
Free rotation and customization of the iCervico healer. The iCervico healer can be oriented ideally on the i-base independent of the implant prosthetic connection /interface orientation, without affecting the digital protocol.
There are 22 prefabricated iCervico Healers to choose from that the clinician can further modify if needed.

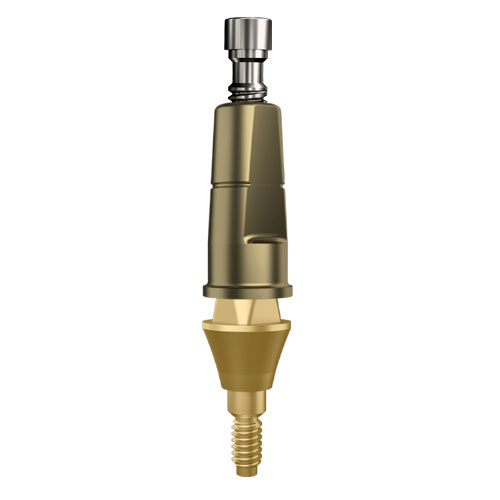

- i-base
One abutment for all stages of treatment
- Direct scan post
- Superior design for aesthetics
- Innovative design for prosthesis retention
- Functional with both analogic and digital protocols
- Suitable for both single and multiple prosthesis
Abutment level prosthetic protocol
- No unnecessary transgingival component disconnections that can lead to tissue recession
- Easy evaluation of prosthetic component fit during all restorative stages; simplifying restorative process of conical connection implants.
- Allows up to 30 degrees angulation correction (short AR/R – sleeve required)

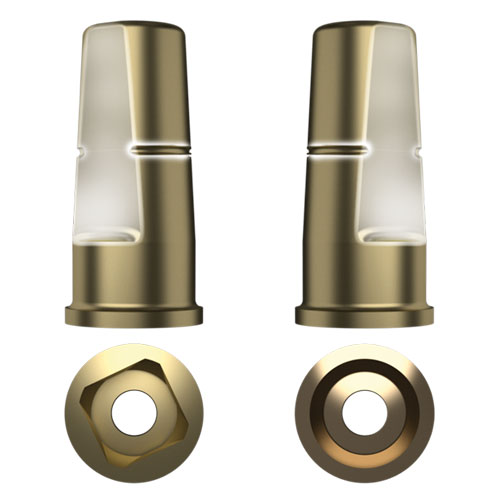

Multi-purpose sleeves
- AR – Sleeve | Anti – Rotational
Suitable for single unit prosthesis
– Quad-surface conical geometry
– Allows precise and anti-rotational fit onto the i-base
- R – Sleeve | Rotational
Suitable for multiple unit prosthesis
– Circular geometry
– Provides ease for multiple unit prosthesis path of insertion
Retention screw
New-generation holding screw made of Ti6Al4V alloy with a diameter of M1.6 (similar diameter to TI-BASE) allowing a screw torque of 30 N/cm. Fixes up to 30 degrees angle in a 360 degrees direction.
ACCESSORIES

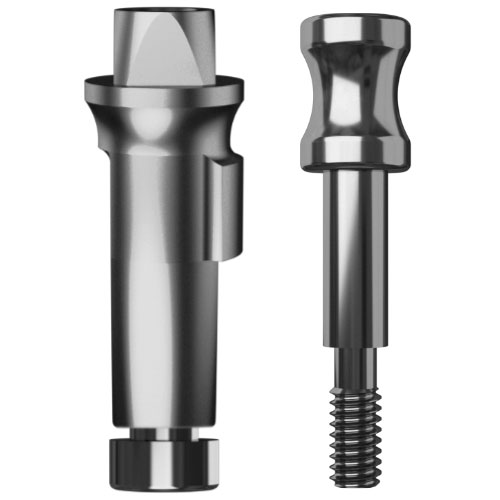

Lab analog – Impression screw
iCervico lab analog
- One analog for all i-base options
- Compatible with both analogic and digital protocols
- Innovative design for accurate positioning into the 3D printed models
Impression screw
- Optional long screw for closed-tray impression technique (Utilize with AR-Sleeve)
