3D Builder Forms

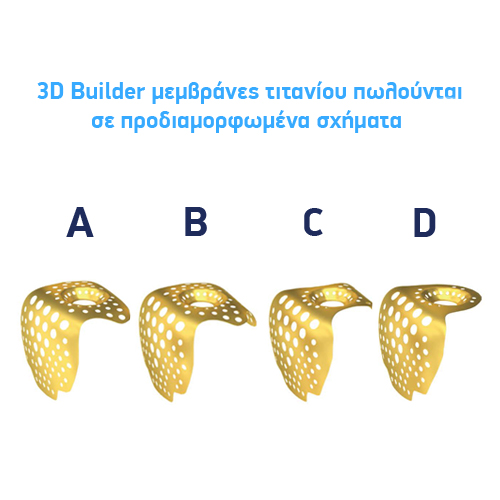

The 3D Builder titanium mesh is usually suitable for bone substitution in one tooth place. It is available in four geometrical (A, B, C, D, E) shapes.
Type A: Suitable for supporting bone substitute material on the top and on one side of the alveolar bone.
Type B: Suitable for supporting bone substitute material on the lateral section of the alveolar ridge and on the top, with a wider crest.
Type C: Suitable for supporting bone substitute material on both sides and the top of the alveolar ridge.
Type D: Suitable for supporting bone substitute material on one side of the alveolar bone and the top, with a narrower crest (between two teeth).
Type E: Suitable for supporting bone substitute material on both sides and the top of the alveolar ridge, with a wider crest.
Properties
- Bone grafting with dental implant placement
- Simple fixation with implant healing cap
- Strong but flexible
- Excellent biocompatibility
Characteristics of 3D BUILDER membranes

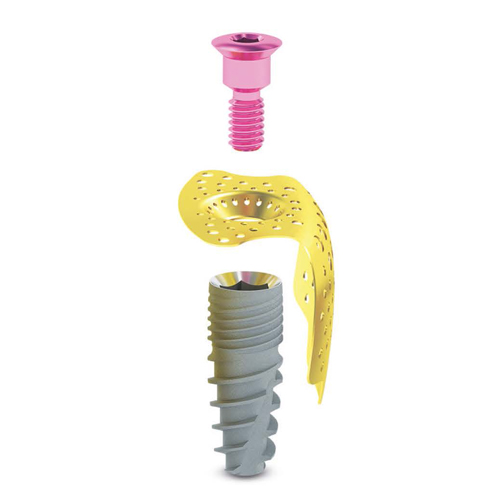

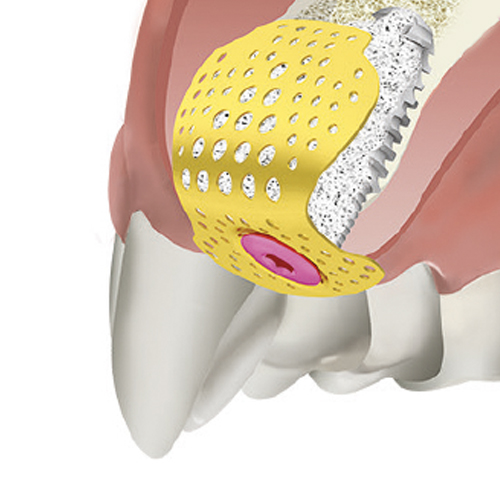

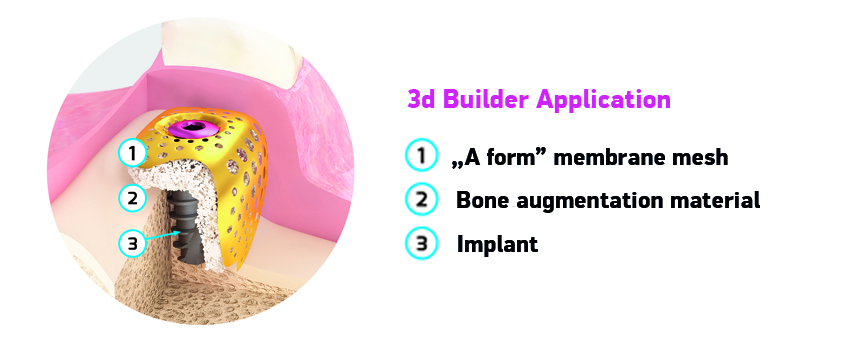

The 3D Builder is an implant accessory used to hold the bone graft material in place during bone augmentation. It is available in a customised, pre-made form, is inserted at the same time as the implant and is easily secured with the implant locking screw.

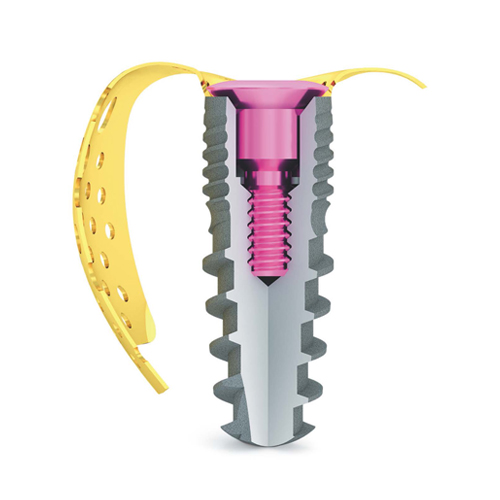

- Can be fixed with locking screw. No need to buy special instruments and accessories, the membrane can be simply fixed to the implant with a locking screw.

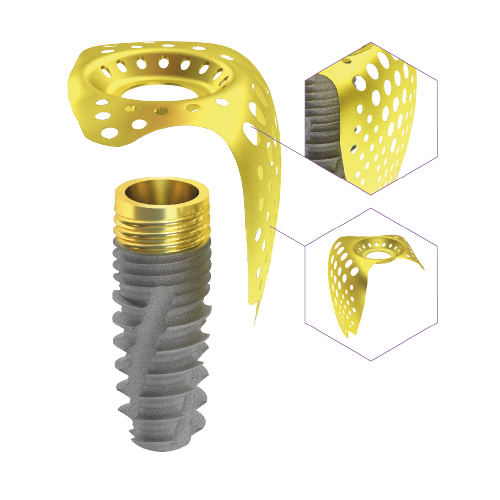

- Perforated titanium plate. Titanium has excellent mechanical strength and the free flow of body fluids is ensured by a micro-perforated surface.
- Pre-made forms. The pre-made forms do not cause irritation, so the chance of failure is minimised.
