Intro
The AutoScan-DS-EX Pro laboratory scanners by SHINING 3D come in two models, each built for a different priority. The Pro (C) is the fast model for everyday lab volume. The Pro (H) is the high-resolution model with dual 5.0 MP cameras for demanding detail. The right choice depends on the work in front of you.
Speed or detail? Two scanners, one choice

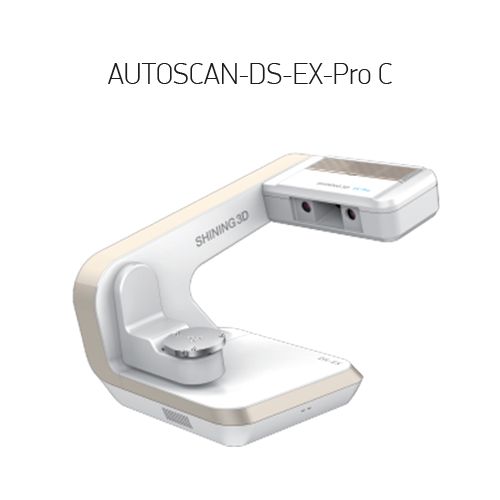

Pro (C) — for speed. 2.4 MP cameras, impression scan in 22 seconds, single jaw in 9.5 seconds. Built for the daily volume of the laboratory.

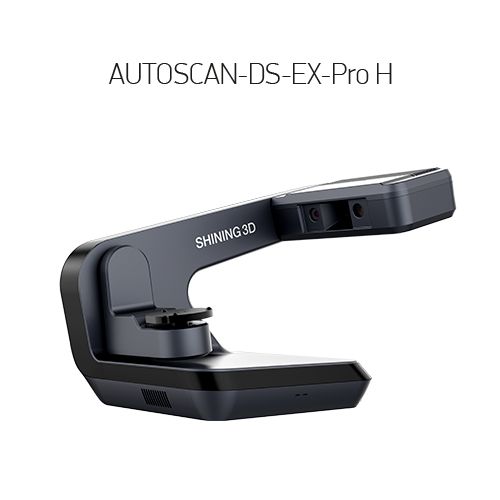

Pro (H) — for detail. Dual 5.0 MP cameras, accuracy ≤8 μm, for implants, scanbodies and demanding restorations.
Shared by both: articulator scanning, simultaneous data processing, and export to open STL, PLY, OBJ formats.
Model Comparison
| Feature | DS-EX Pro (C) | DS-EX Pro (H) |
|---|---|---|
| Cameras | 2.4 MP | 2 × 5.0 MP |
| Accuracy | < 10 μm | ≤ 8 μm |
| Bite scan | 5 sec | 6.5 sec |
| Upper/lower jaw | 9.5 sec | 14 sec |

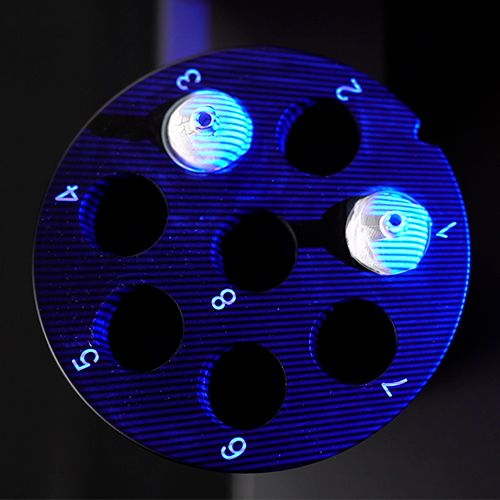

| 1–4 dies | 15 sec | 21.5 sec |
| 5–8 dies | 17 sec | 25.5 sec |
| Impression | 22 sec | 31 sec |

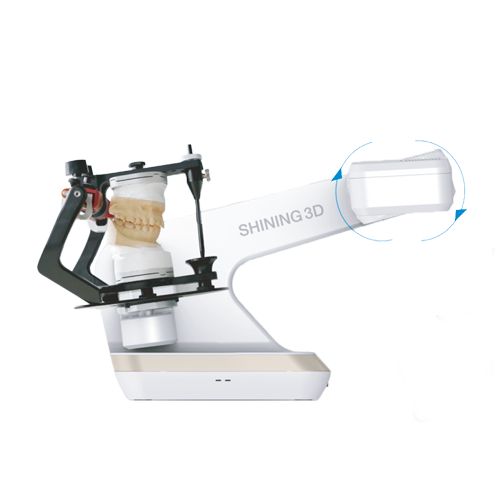

| Articulator scan | Yes (dynamic, 0–5°) | Yes (articulator transfer) |
| Output formats | STL, OBJ, PLY | STL, PLY, OBJ |
| Light source | Blue Light | Blue Light |
| Dimensions | 260 × 270 × 420 mm | 260 × 270 × 420 mm |
| Weight | 5 kg | 5.0 kg |
| Interface | USB 3.0 | USB 3.0 |
| Power supply | DC 24V | DC 24V |
Which one is right for you?
DS-EX Pro (C) → Faster scanning for high daily volume and routine lab work.
DS-EX Pro (H) → Higher resolution (5.0 MP, ≤8 μm) for implants, scanbodies and fine restorations.
Key Advantages
Detail without compromise (Pro H)
Dual 5.0 MP cameras capture every detail with an accuracy of ≤8 μm.
Speed where it counts (Pro C)
From a 5-second bite scan to a complete impression in 22 seconds.
Intelligent processing
Both models process data in parallel with scanning, so the file is ready when the scan finishes.
Applications
- Study & working models

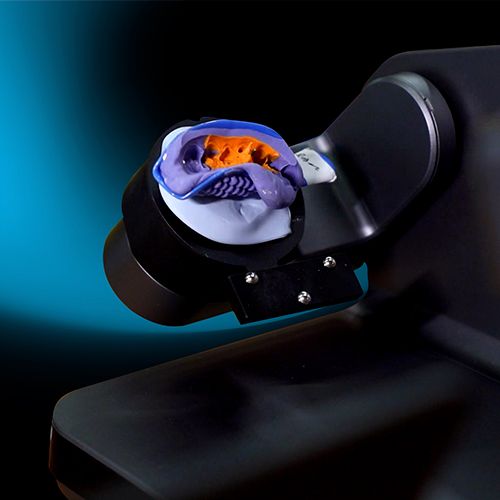

- Impressions
- Implant abutments & implant bridges
- Scanbodies
- Full dentures
- Articulators (both models)
- Post & core (Pro H)
- Texture scanning
Software & Workflow

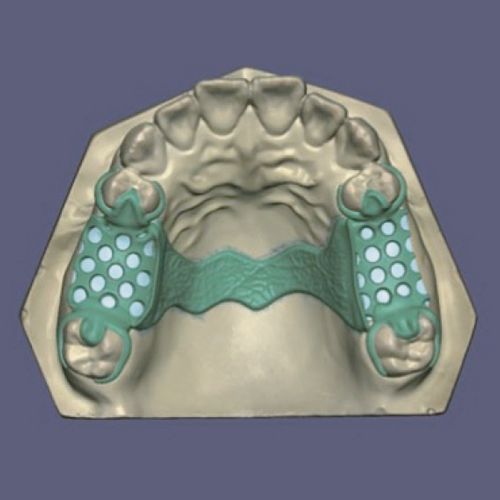

Set up your own workflow to match your needs: AI scan modes, HDR mode and texture scanning, with all-in-one and triple-tray support for complete scan data in fewer steps. Output imports directly into open CAD software such as exocad.
